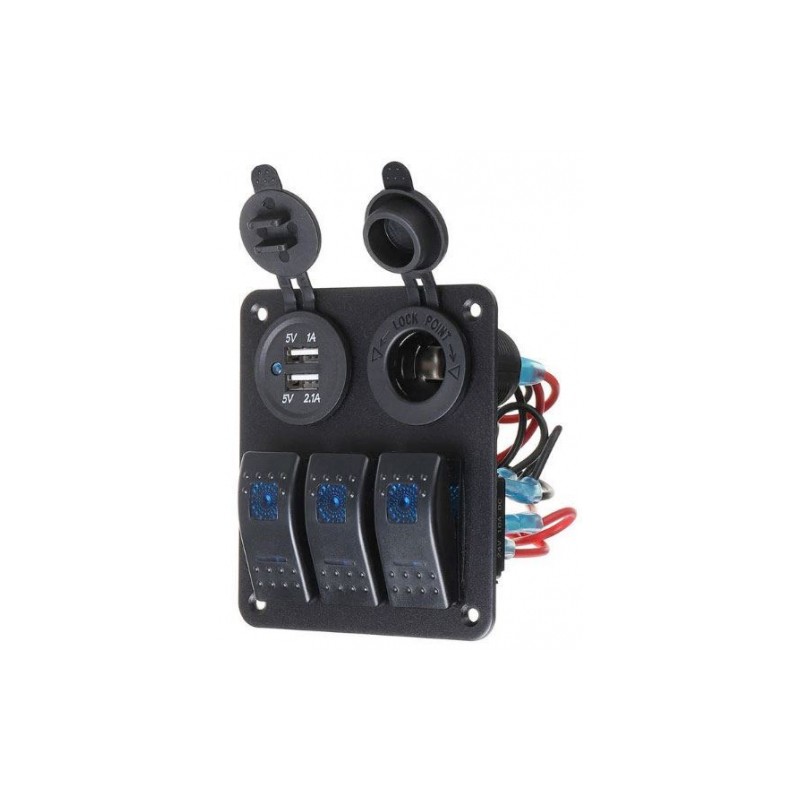

Panel with 3 switches and 2 power sockets

Panel with three 1-pole switches with double illumination, 1 × USB 1 + 2.1A socket, 1 × 12V power socket, 100 × self-adhesive label with various symbols on the switch.

Specifications:
Supply voltage: 12-24VDC
Panel dimensions: 100 × 110mm

Function:
The switches are equipped with complete cabling and two independent lighting circuits. The thin line can be permanently lit, eg in low ambient light, and is used to orient the switch. The second circuit illuminates the circuit-breaker function symbol and is only functional when the circuit-breaker is switched on. The circuit breaker itself is rated for 12V / 20A or 24V / 10A and is single-pole.
