Product description

product description

• Equipment intended for stripping conductors.
• Press working range: 0.2 - 6.0 mm² (10 - 24 AWG)
• multifunctional, reinforced device with rubberized handle and hardened blades
• mechanism: front, automatic
• duringthe stripping process automatically adapts to the cross-section of the processed wire
• it also has a cutter and a point press
• the puller is adjustable to the length of the stripped part
• length: 205mm
• weight: 0.30 kg

Connector crimp terminals:

• SansSerif';">Insulated: 0.5 – 6 mm² (22-10 AWG),
• non-insulated: 4-6 mm2 (12-10 AWG), 1.5-2.5 mm2 (16-14 AWG), 05-1 mm2 (22-18 AWG).

HIGH QUALITY

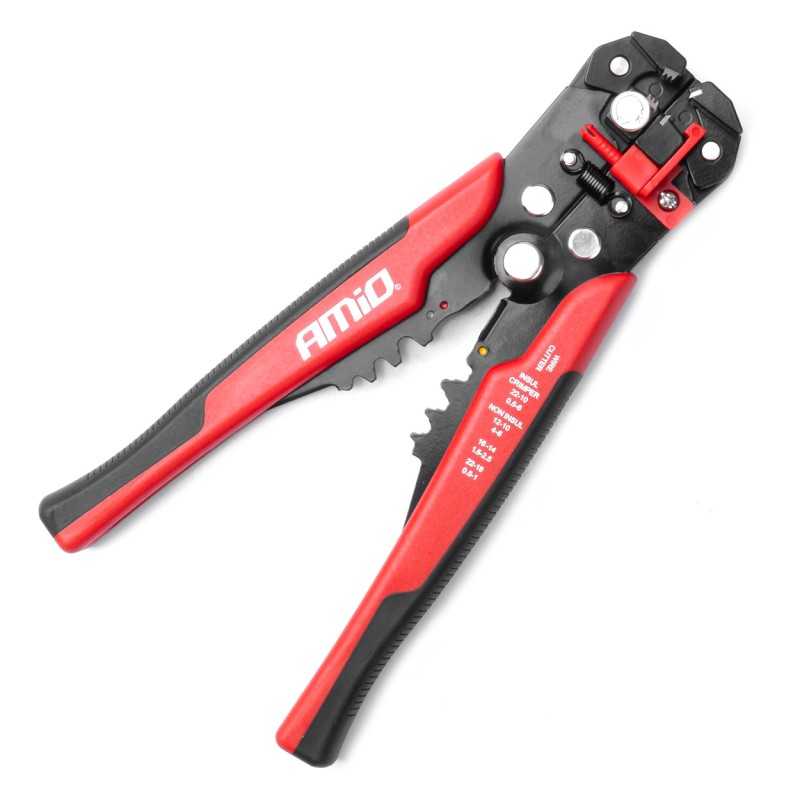

AMiO AUTOMATIC STRIPPER

• INSULATION STRIPPER - this practical tool will allow quick and accurate removal of insulation from single-core or multi-core cables. To strip, insert the wire into the jaws so that it adheres evenly to the tool - then squeeze the handle
• WIRE CUTTER - another function of the puller is to cut wires. The 11 mm blade is between the handles of the tool. To cut wire of a similar or smaller width, simply place it between the blades and squeeze firmly.
• PRESS FOR CONNECTOR ENDS - the device can be used to crimp insulated and non-insulated connector ends to wires with a cross-section from 1.5 mm2 to 6 mm2. Just insert the wire with the stripped end and insert it into the connector, then place it in the crimping position.
• PRESSURE STRENGTH ADJUSTMENT + LIMITER - the device has a knob that is located under the jaws. With its help, you can set the pressure on the insulation, so you don't have to worry about damaging the wire while working.
