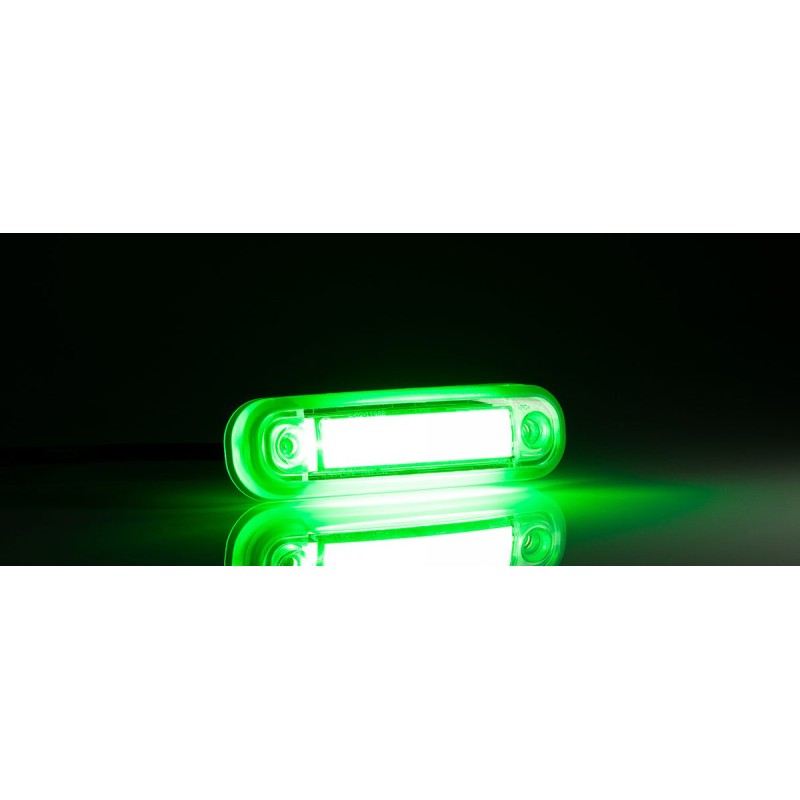

position light FT-045 LED 12 + 24V green

1-function LED position light - low energy consumption
E9 homologation for road traffic
EMC approval
impact-resistant design
The position light can be mounted on the surfaces with two screws as standard.
Mounting on vehicle trim tubes can be done using a transparent rubber pad, available under code s199, which is not part of the standard product packaging.
Light Function:
- contour green light
Lamp parameters:
- Supply voltage range: 12-36V DC
- Operating temperature: -40 ° C to + 55 ° C
- weather resistant
- waterproof - hermetically sealed
Power consumption (rated power):
12V / 24V = 1 W / 2W
Wiring connection:
Wire color - function
white - (-) minus skeleton
black - (+) plus
Dimensions (mm): 110 x 30 x 18
IP protection: 68
