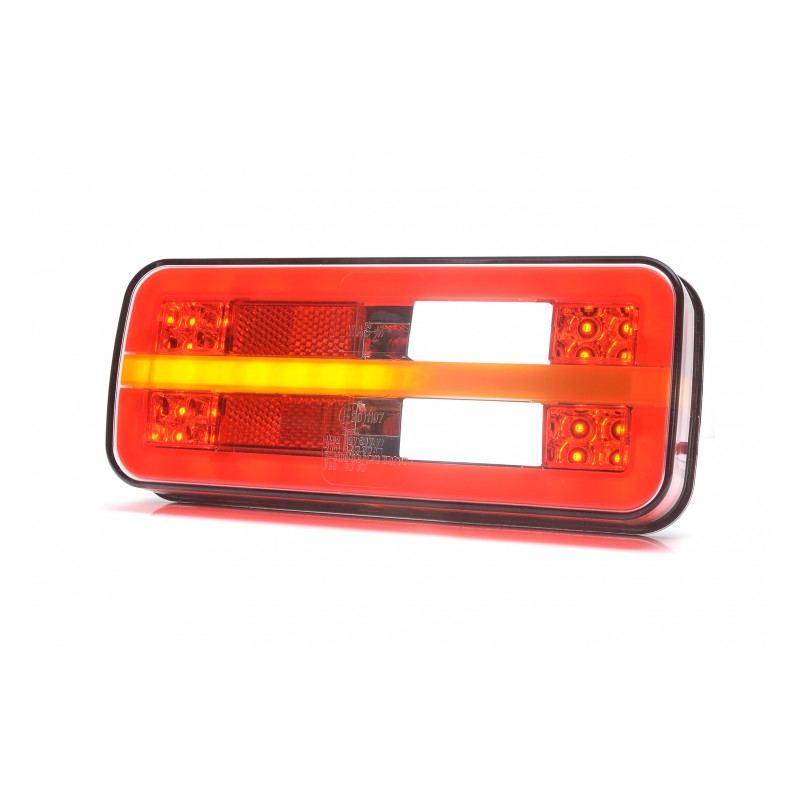

Combination rear light W187 / 1324DD L / P 12 / 24V with dynamic turn signal

The first rear multifunction light with a hologram effect.

The new range of W187 LED multifunction rear LED lights has an innovative design and a distinctive look. LED modules: position, turn signal and reversing are made of a special material, so you do not see the individual points of light, but only the shape of the light with a NEON effect. The lamp cover and cover are made of high quality plastic, resistant to scratches, temperature factors and UV radiation. In addition, the lamp has electromagnetic compatibility (EMC) approval and is easy to install on the vehicle.

Weight: 0.62kg
IP class: IP 66/68
Homologation: R10, R23, R7, R6, R38, R3, R4

Wiring connection:

Wire color - function

white - (-) minus skeleton

black - (+) plus, position light (+ number plate light if equipped)

yellow - turn signal

red - brake light

blue - fog light (if equipped)

gray - reversing light (if equipped)

Dimensions (mm): 200.5 x 85.3

Fitting Position: Right and Left (Universal)

IP protection: 66/68

Type el. connection: wire 6x0.75mm 200cm

Light Function: Contour End, Brake, Directional, Reverse, Fog, Reflector
