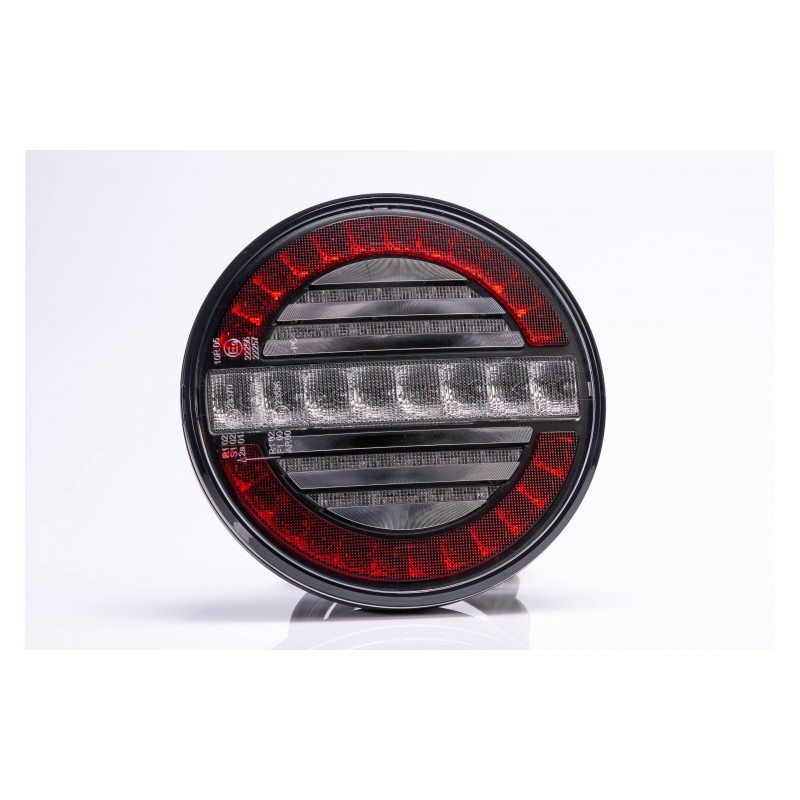

Rear combination LED light FT-214 12 + 24V L / P

LED light with functions: tail position light, fog light, reversing light
universal light for right and left mounting
length of supply wire 1m
supply voltage 12V and 24V
fastening with two M6 screws with a pitch of 45mm
light diameter 140mm, depth 35mm
homologation E9
IP68 - waterproof light, hermetically sealed

El. parameters:
position light - 12V / 24V = 0.6W / 1.2W
fog light 12V / 24V = 3W / 3.6W
reversing light - 12V / 24V = 2.4W / 3W

Wiring connection:
Wire color - function
white - (-) minus skeleton
black - (+) plus, position light
yellow, green - reversing light
red - fog light
