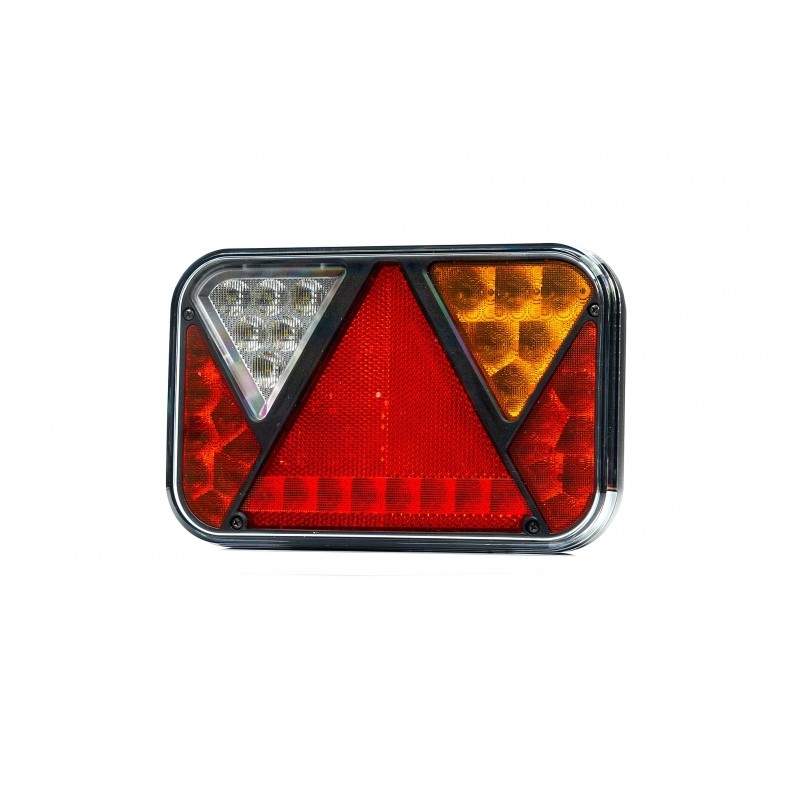

Rear lamp FT-270 right LED 12V with reversing light

LED light designed for 12V.

The light contains:
Direction indicator light
position light + license plate illumination
brake light
reverse light
retro reflector triangle

Type el. connection: wire 1m
fastened with two M6 screws with 152 mm pitch
width x height x depth: 200 x 130 x 50 mm
homologace E9
EMC compatibility
made of PC - mechanically resistant
light is waterproof - IP68

wiring:
white-minus field
black-position light + license plate
red-stop light
yellow-directional light
blue- fog light

current drain:
position light + license plate - 12V = 0,1A (1,2W)
brake light 12V = 0,2A (2,4W)
turn signal - 12V = 0,2A (2,4W)
fog (reverse) light - 12V = 0,2A (2,4W)
