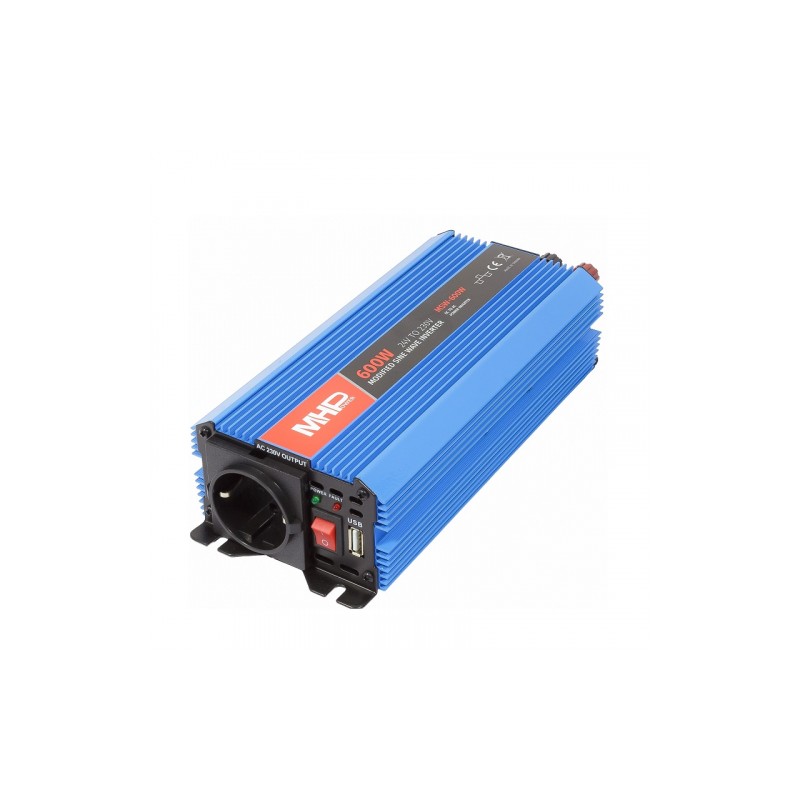

High quality and highly reliable voltage converter MHPower MSW-600W. Robust design, designed for professional applications. Inputs and outputs shielded by ferrite cores. The output voltage has a modified sine wave output. Suitable for less sensitive appliances. A warning tone sounds when the battery voltage is reduced, the inverter switches off when the voltage is further reduced. When the voltage increases, it closes itself. Therefore, there is no risk of discharging the battery. Suitable for places without electricity. Easy installation - connecting cables to the battery.

Possible applications:
Cars, caravans, water sports, marine equipment and systems, motorcycles, motorcycles, smartphones, laptops, low-power home appliances.

Function:
High efficiency 85 ~ 90%
Automatic detection of the initial battery status check.
Intelligent PWM power control.
Main ON / OFF switch
The cooling fan in the inverter is thermally activated, it automatically shuts off when the inverter cools down.
Output short circuit protection
Automatic shut-off in case of overheating
Green LED on the front panel to confirm switching on
A red LED on the front panel indicates a faulty condition

Technical Specifications:
Input voltage: (DC) 21 - 30V (car battery)
Output voltage (AC): 230V with tolerance ± 5%
Continuous output power: 600W
Peak output power: 1200W
Output waveform: modified sine
Efficiency: 85%
Switch-off at voltage drop: 19V ± 1V
Voltage boost off: 31 V ± 1V
Low voltage warning signal: 21V ± 1V
Thermal protection: 60C ± 10C
The cooling fan in the inverter is thermally activated.
Fuse: 20A 2pcs (from outside the device)
Dimensions (LxWxD) 230 x 100 x 60 mm
Net weight 1.2 kg

Protection function:
Overload protection
Input polarity protection (fuse)
Low voltage: alarm on and off
Surge protection
Thermal protection
Short circuit protection

Connectors, sockets:
1x Schuko socket
1x USB socket 5V / 500mA
2x Connecting cable eyelet / clip crocodile, length: 55cm
1x Main ON / OFF switch
1x Control LED

Package contents:
1x Voltage converter
2x Connecting cable eyelet / clip crocodile, length: 55cm
