3 in 1 battery tester with printing option

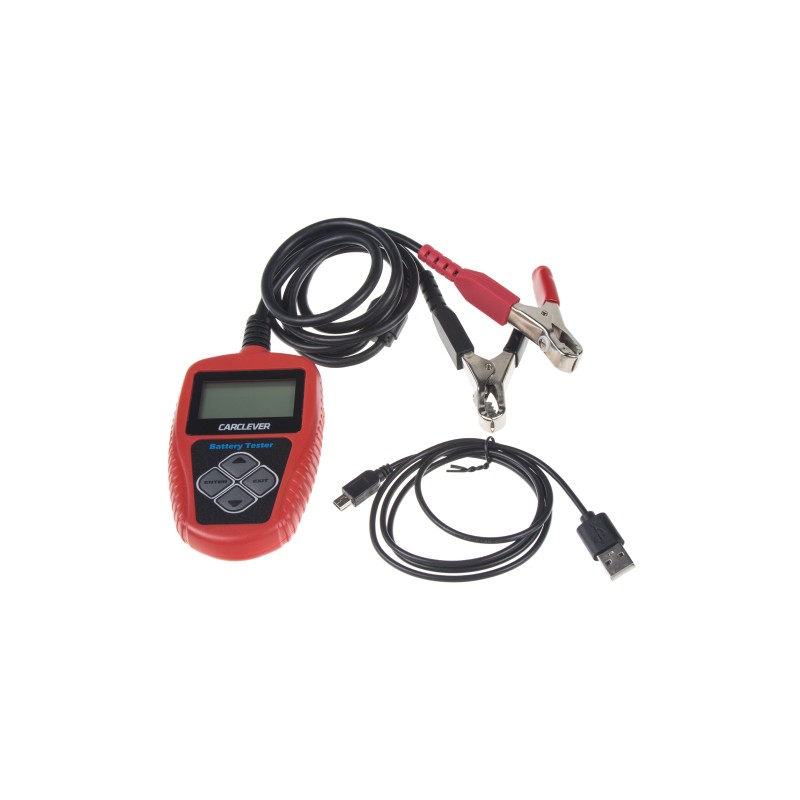

Professional multifunctional tester for 12 V car batteries with the option of printing out the measured parameters . Suitable for classic acid, gel and AGM batteries. After connecting the battery, the tester shows the instantaneous battery voltage on the display . You enter the type of battery and the standard in which you want to measure (EN, DIN, SAE, etc.) and set the value of the starting current of the measured battery on the display. Then the tester shows the current starting current of the battery and its status in %. Furthermore, it is possible to measure the charging of the alternator and the functionality of the starter .

Technical parameters

- measured voltage : 9 - 15 V _

- measuring range: 10 0 - 20 00 A (EN)

- working temperature: 0 - +50 ºC

- display: 7 - line alphanumeric large 2 "/ 5 cm backlit LCD display

- menu in Czech including diacritics

- cover: impact-resistant ABS plastic

Function

- starting current of the battery, based on the principle of conductivity measurement

- measurement of internal resistance ( M Ω ) _ _ _

- measures the correct functionality of the starter , based on the voltage drop principle

- measures the correct functioning of the alternator

- at the end of the test, it will display the maximum starting current of the battery and its status in %

- the possibility of printing the measured values on an external printer ( connecting the mk PC with the attached cable)
