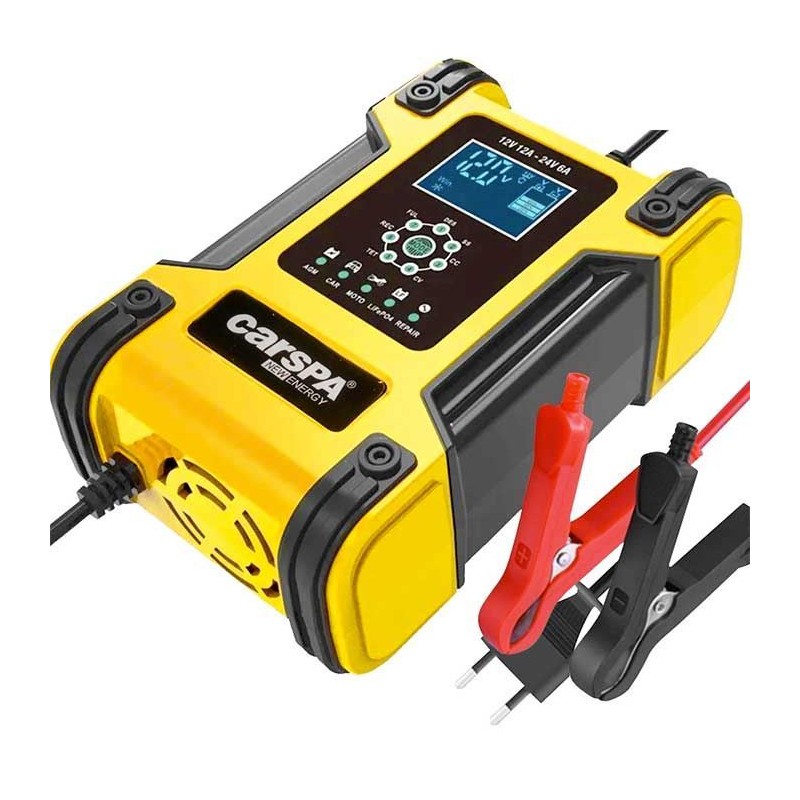

Charger with automatic CARSPA 12V-12A/24V-6A

A smart, fully automatic charger for Pb and LiFePO4 batteries with a current of up to 12A, enabling a permanent connection with the battery being charged. It is equipped with a program for the regeneration of Pb batteries. 7-level charging.
Specifications:
• Input voltage: 100-240VAC, 50-60Hz
• Rated power: 12V 12A / 24V 6A
• Minimum starting voltage: 7.0V
• Rechargeable batteries: Pb 12 or 24V, LiFePO4 3S-8S, Li-Ion 2S-7S
• Battery capacity range: 6Ah – 200Ah
• Short circuit protection
• Overvoltage protection
• Protection against overheating
• Fan
• Thermal protection: 65 ° C +/- 5 ° C
• Efficiency: App.85%.
• Compliant standards: CB, CE, IEC60335, EN61000, EN55014
• Weight: 700g

Instructions for use:
1) Connect the charger to the mains voltage and select the desired charging mode with the MODE button (AGM, CAR, MOTO, LiFePO4, REPAIR) AGM is preset, the last set data remains in the device's memory even after it is disconnected from the network.
2) Turn off the device from the mains and connect the charging battery to the supply terminals. Step 1 is not required if the same type of battery is repeatedly charged.
3) Connect the charger to the mains. The charger will start charging automatically. The phase of the charging cycle, terminal voltage, charging current, ambient temperature and degree of charge are displayed on the circular indicator.
4) After reaching the required terminal voltage (for AGM 14.4V) the charger switches to float mode with maintenance voltage (for AGM 13.5V)
