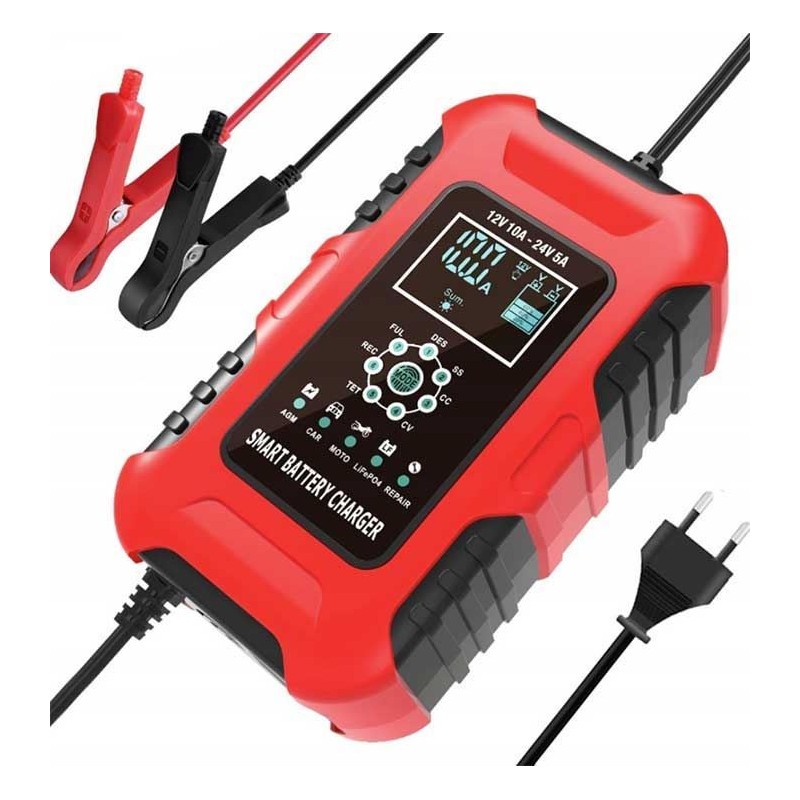

Charger with automatic CARSPA 12V-10A/24V-5A

A smart, fully automatic charger for Pb and LiFePO4 batteries with a current of up to 10A, enabling a permanent connection with the battery being charged. It is equipped with a program for the regeneration of Pb batteries. 7-level charging.
Specifications:
• Input voltage: 100-240VAC, 50-60Hz
• Rated power: 12V 10A / 24V 5A
• Minimum starting voltage: 7.0V
• Rechargeable batteries: Pb 12 or 24V, LiFePO4 3S-8S, Li-Ion 2S-7S
• Battery capacity range: 6-180Ah (12V), 6-90Ah (24V)
• Short circuit protection
• Overvoltage protection
• Protection against overheating
• Fan
• Thermal protection: 65 ° C +/- 5 ° C
•Efficiency: App. 85%
• Compliant standards: CB, CE, IEC60335, EN61000, EN55014
style="color:#4f4f4f;font-family:sans-serif;font-size:12.8px;background-color:#ffffff;">•Dimensions (L × W × H): 170 × 100 × 70 mm
• Weight: 590g

Instructions for use:
1) Connect the charging battery to the charging terminals of the charger. This is indicated by an acoustic signal (beep) and the display lighting up. The display shows the battery terminal voltage.
2) Connect the charger to the mains. Now you have approx. 10 seconds to change the charging mode (AGM, CAR, MOTO, LiFePO4, REPAIR) Then the charger will automatically switch to the charging phase. The phases of the charging cycle are shown on the circular indicator, the terminal voltage, charging current, ambient temperature and degree of charge are shown on the display.
3) After reaching the desired terminal voltage (for AGM batteries, the value is 14.4V), the charger switches to float mode with maintenance voltage (for AGM it is 13.5V)
