    24V spiral cable 7P EBS ADR 4.5 m coil diameter 50 mm

    641166

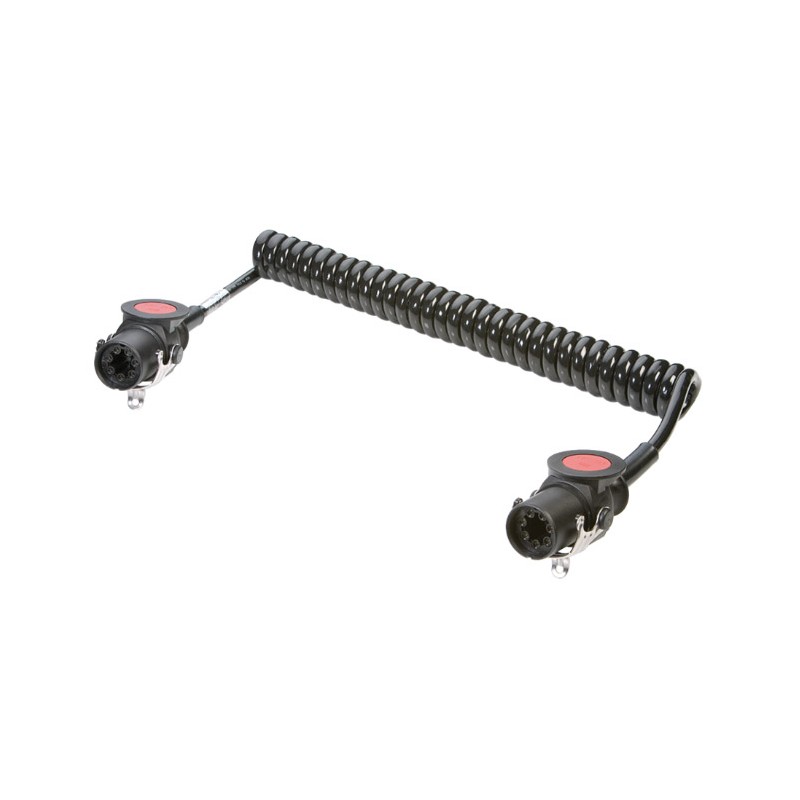

    7P/24V Coil (ISO 7638-1 ABS, EBS, ADR)

    €70.88
    Tax included
    IN STOCK

    • Product availability

    * Required

    We will answer you as soon as possible.

    Close or

    Description

    Product information

    Name 7P/24V Coil (ISO 7638-1 ABS, EBS, ADR)
    Product number 641166
    Category Coil
    Standards ISO 7638-1
    Industries Commercial vehicles
    Electrical details and temperature resistance
    Voltage [in V] 24
    Packaging and ordering details
    Packaging PE bag
    Design features
    Seal type protective bend grommet A special feature requirements similar to ISO 4141-4
    Material
    Cable color Black
    Case color Black
    Cover liner color Red
    Cable material PUR
    Case material reinforced composite
    Connection
    Number of contacts 07
    Number of plugs connected 2
    Number of sockets connected 0
    Cable outlet protective bend grommet
    Addendum to the standard ABS, ADR, EBS
    Protection IP 54
    Measurements and dimensions
    Max. extension length [vm] 4.50
    Max. working length [vm] 4.00
    Working length [m] 3.00
    Wire cross section 5x 1.5mm² + 2x 4.0mm²
    Coil outer diameter [in mm] 50.00
    Product Details
    641166
    0
    1 Item

    Data sheet

    Package
    Piece
